After having faced for the first time the µPD765a I think I have now a nice little tool for using with your 3" or 3.5" drives.

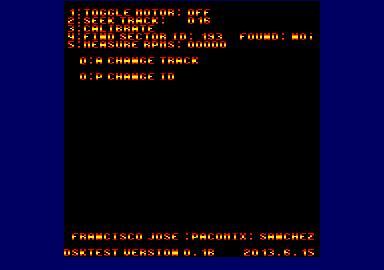

The tool lets you turn the motor on and off, seek a specific track, try to find a specific SectorID, calibrate and measure (I think quite reliably) the rotational speed of the motor.
I didn't know it wasn't so hard programming for the FDC controller. Total time for the tool has been around 8 hours. Almost more time setting up the text in the correct places in the screen and testing than any other thing :) Regarding the reliability of the measured RPMs in Winape it always gives me 300 RPMs. I tried with some drives here and it works like a charm. Of course there could be a little deviation but I think this is really useful at least diagnosing non-working drives as it happened to me with the latest two ones I bought. One of them is already repaired. The final solution I used for measuring the RPMs was to look for an invalid SectorID or a track without address marks. Both performs fine. I also want to warns to anybody that would like to use it. If it breaks your drive I am not responsible. So you have been warned. For me it has been really helpful.
Any suggestion in order improving it would be more than welcome!
